Wide voltage range: 24V-26VAC/DC
Integrated power unit
Long-lived and maintenance-free by LED technology
Fast fixing spring connector
On/off switch
Magnet fixing
Length: 25cm

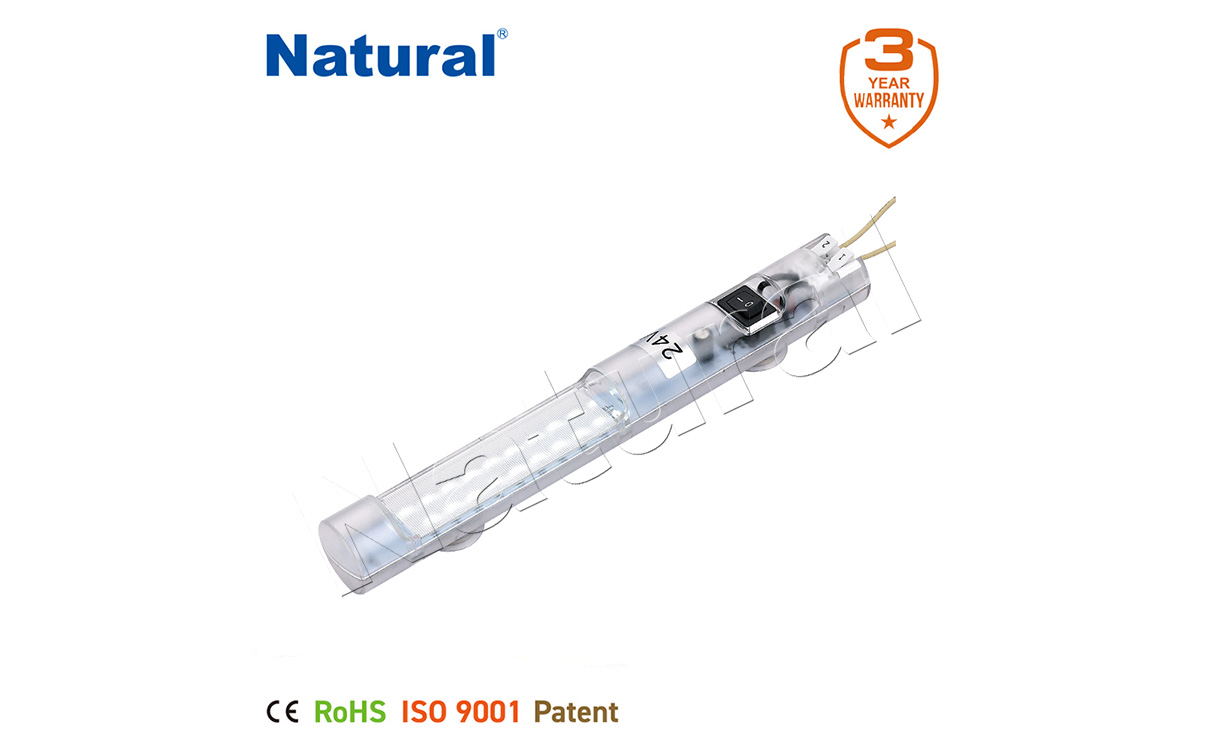

The lamp series LED 025-CEM-24 is suitable for all types of panels and enclosures, especially where space is at a premium. The lamps have a very long service life thanks to the use of LED technology
Technical Data
LED 025-CEM-24 | |
Power consumption | max. 3W |
Luminosity | 300Lm at 120° |
Lamp type | LED, angle of radiation 120° light color: daylight, color temperature: 6,000K to 7,000K |
Service life | 60,000h at +20°C (+68°F) |
Connection | 2-pole connector with snap lock |
Mounting | magnet fixing or screw fixing (M5), torque 2Nm max. |
Casing | plastic, transparent |

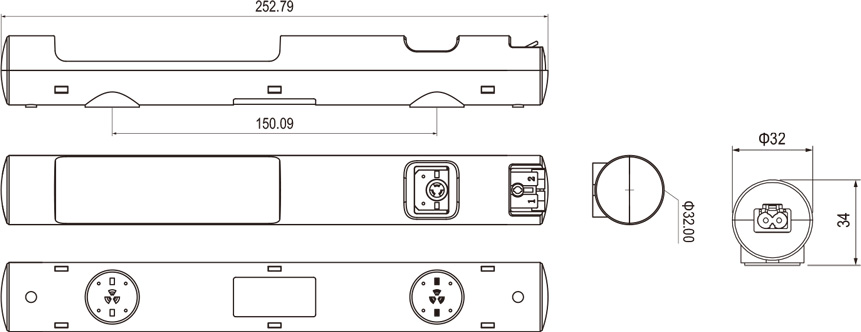

Dimensions | see drawings |
Weight | 0.2kg |
Operating/Storage temperature | -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F) |
Operating/Storage humidty | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Mounting options: The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure. A classic is the LED 025-CEM-24 with screw fixing.
Note: The lamp must not be used for household lighting.
Art. No. | Fixing type | Switch | Operating voltage |
025CEM-24 | Magnet fixing | on/off light switch | 24-26VAC/DC(min. 24V, max. 26V) |
¹ approx. 5 min. fixed switch-on duration
